Hosiwell - IM/IN PVC - PVC控制電纜系列FT1耐燃等級
產品名稱 : Hosiwell - IM/IN PVC - PVC控制電纜系列FT1耐燃等級
產品描述
As a premium cable manufacturer, Hosiwell manufactures Instrument cable passes UL vertical flame test series product in best quality; Marking On The Cable Surface : HOSIWELL CABLE IM-X.XXXXC CONTROL CABLE ..... E125840 - T (UL) TYPE CL3 105°C XXAWG LL80602 CSA AWM IIA FT1 XXAWG 105°C 600V
| Hosiwell Product Description | |

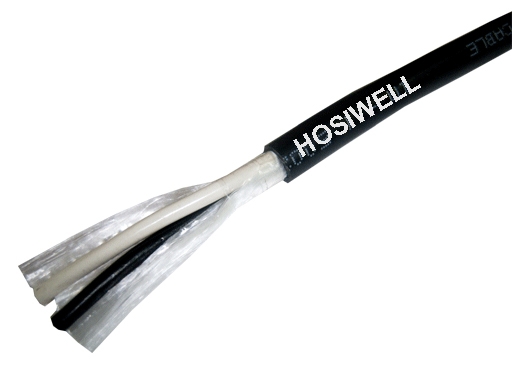

| Bare stranded copper conductor . Color or number coded PVC , PE , PP insulation available. With mylar tape 100% coverage. Weatherproof and sunlight resistance PVC jacket. Anti-ant and mouse destroy PVC jacket-available . Rated temp.105°C , rated voltage 600V. UL File No.: E125840 , CSA File No.: LL80602 . ( UL type CL2 , CL3 and CSA type AWM FT1 Listed ) |
點小圖放大圖
產品介紹
| Part No. | Description | Brochure |
| IM035XX | 22 AWG, 0.35 sqmm. DCR 55.4 ohm/km | Download >> |
| IM050XX | 20 AWG, 0.50 sqmm. DCR 34.4 ohm/km | Download >> |
| IM075XX | 18 AWG, 0.75 sqmm. DCR 21.9 ohm/km | Download >> |
| IM100XX | 17 AWG, 1.00 sqmm. DCR 17.4 ohm/km | Download >> |
| IM125XX | 16 AWG, 1.25 sqmm. DCR 13.7 ohm/km | Download >> |
| IM150XX | 15 AWG, 1.50 sqmm. DCR 10.8 ohm/km | Download >> |
| IM250XX | 13 AWG, 2.50 sqmm. DCR 6.82 ohm/km | Download >> |
| IN150XX | 15 AWG, 1.50 sqmm. DCR 10.8 ohm/km | Download >> |
